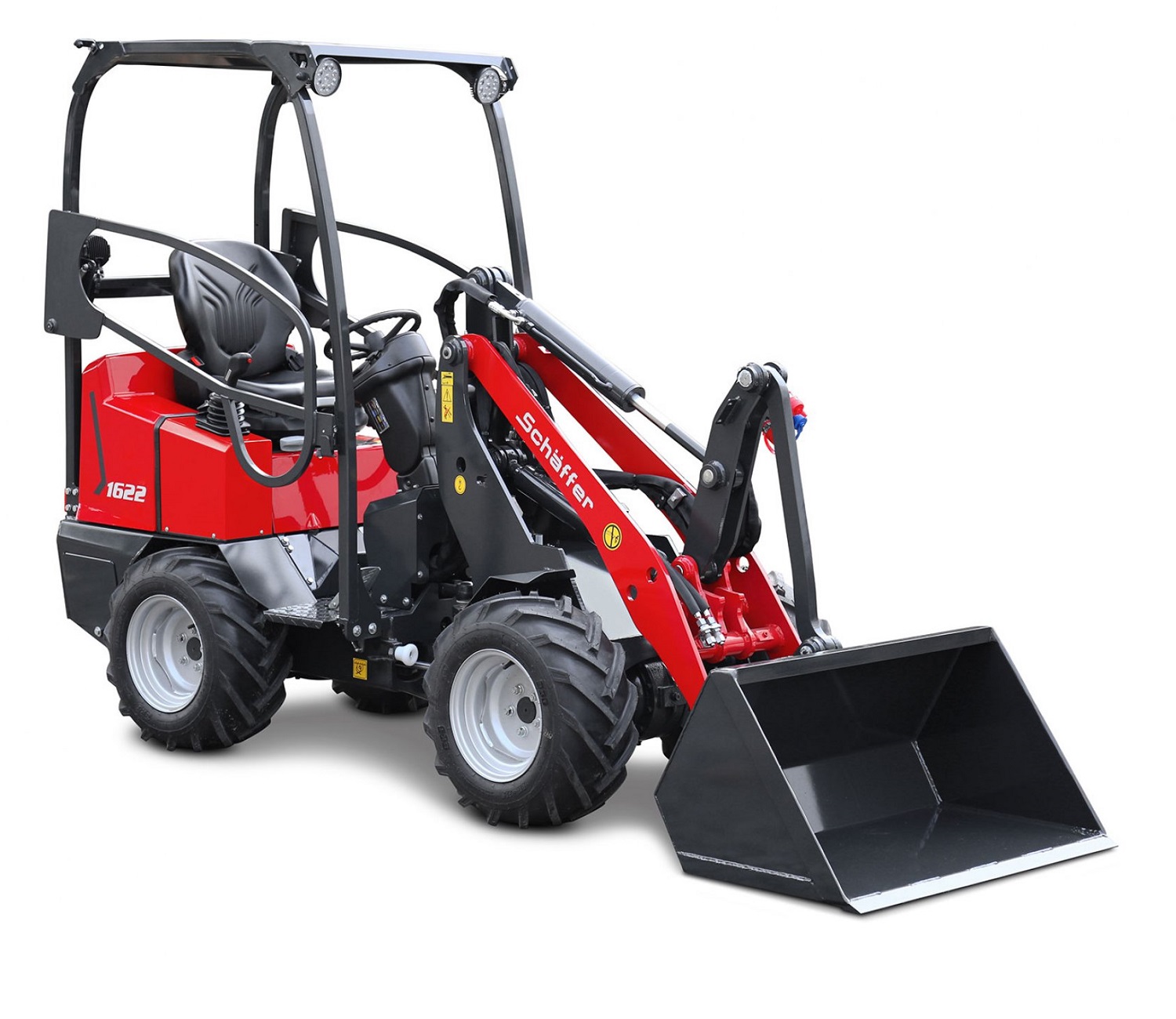

Schaffer 1622 tool carrier mini loader with removable ROPS/FOPS
At 22hp, the Schaffer 1622 tool carrier loader is now the most compact loader in Schaffer's Australian range - only 2450mm long without an attachment.
Engineered and built in Germany for Australian conditions, Schaffer's tool carrier loaders are renowned as best of breed.
Schaffer Tool Carrier Loader 1622 - Walk around, only in German language.
Scroll sideways to view table.
| Mini Loader 1622 | Tech Spec |
|---|---|
| Diesel motor | Kubota 3 cylinder |
| Output | 16.2 kW (22 hp) |
| Operating weight with GP bucket & driver | 1250 kg |
| Standard tyres | 23x10.5-12 AS/MultiTrac |
| Ply rating | 8 ply |
| Service brake | Hydrostatic/mechanical |
| Parking brake: | Mechanical drum brake |
| Auxiliary flow (options available) | 28 lpm |
| Working pressure | 200 bar |
| Steering | Articulated |
| Hydraulic lifting power | 800 kg |
ISO 14397-1 operating loads with GP bucket |
|
| Static tipping load straight, ISO8313 | 800 kg |
| Static tipping load articulated, ISO8313 | 580 kg |
| Operating load with GP bucket (50% artic tip load) | 290 kg |
Data with loading fork - centre of gravity 500mm |
|
| Static tipping load straight, ISO8313 | 600 kg |
| Static tipping load articulated with forks | 450 kg |
| Payload according to EN474-3, 60%/80% | 270/360 kg |
| Payload 80%, transport position fully lowered, articulated | - |
| Axles | Original Schaffer Axles 5 bolt |
| Differential | Star gear |
| Oscillation | Articulation joint |
| Speed | 16 km/hr |
| Gears | Single speed, Foot control |
| Fuel capacity | 25 litres |
| Oil reservoir | 22 litres |
Scroll sideways to view table.
| Tool carrier loader 1622 | ||
|---|---|---|
A |
Axle Base (mm) | 1345 |
B |
Chassis length (mm) | 2450 |
C |
Total length with bucket (mm) | 3050 |
D |
Excavating depth (mm) | 80 |
E |
Maximum working height (mm) | 2630 |
F |
Max. bucket pivot point | 2230 |
G |
Max. loading height with pallet fork (mm) | 2020 |
H |
Dumping height - depends on bucket (mm) | 1510 |
I |
Samson post height (mm) | 1490 |
J |
Dump reach (mm) | 195 |
K |
Seat height (mm) | 1010 |
L |
Height with removable hardtop on (mm) | 1990 |
N |

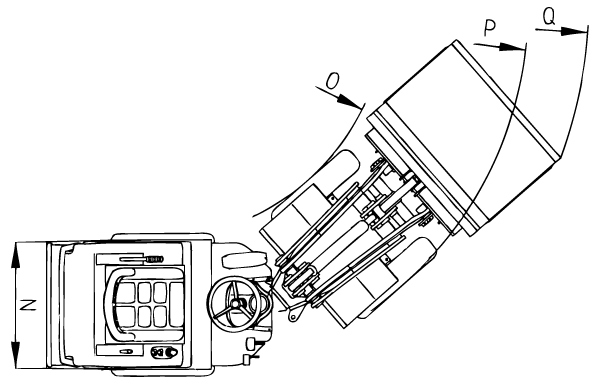

Width over tyres (mm) | 1130 (from 890mm) |
O |
Track arc inside (mm) | 970 |
P |
Track arc outside (mm) | 1875 |
Q |
External radius with std bucket (mm) | 2222 |
Schaffer tool carrier loaders are considered the best in the world, so it's not surprising that the mini loader class is one of Schaffer's most successful loader series ever.
Engineered and manufactured in Germany, Schaffer mini loaders have been cleverly designed to perform in the tightest spaces.

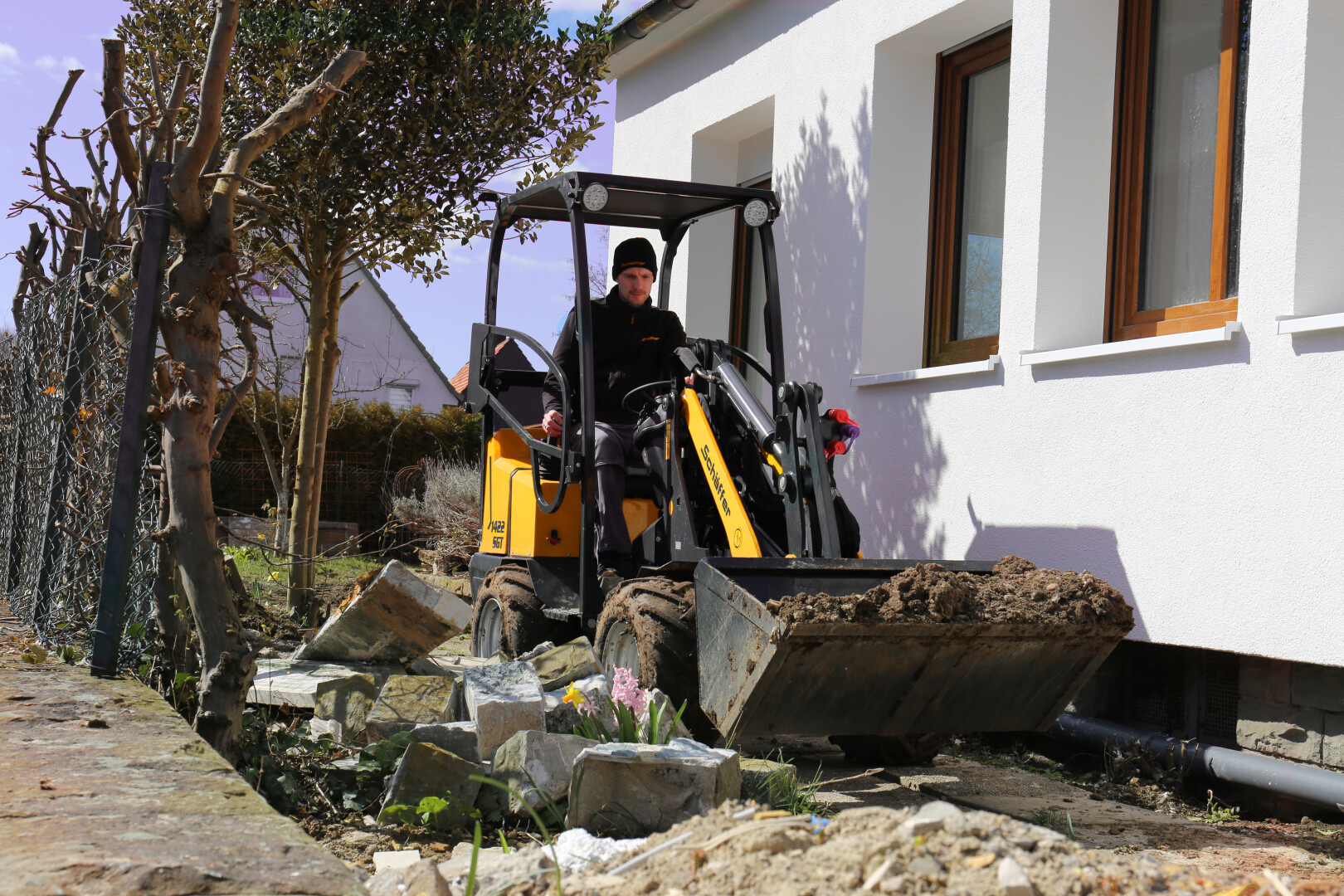

With an overall width from just 1130mm (890mm with transport tyres), the Schaffer 1622 mini loader can enter previously inaccessible sites so that manual work can be mechanised.
Work can be done faster and more easily, which means vastly improved productivity and profitability for you and your business.

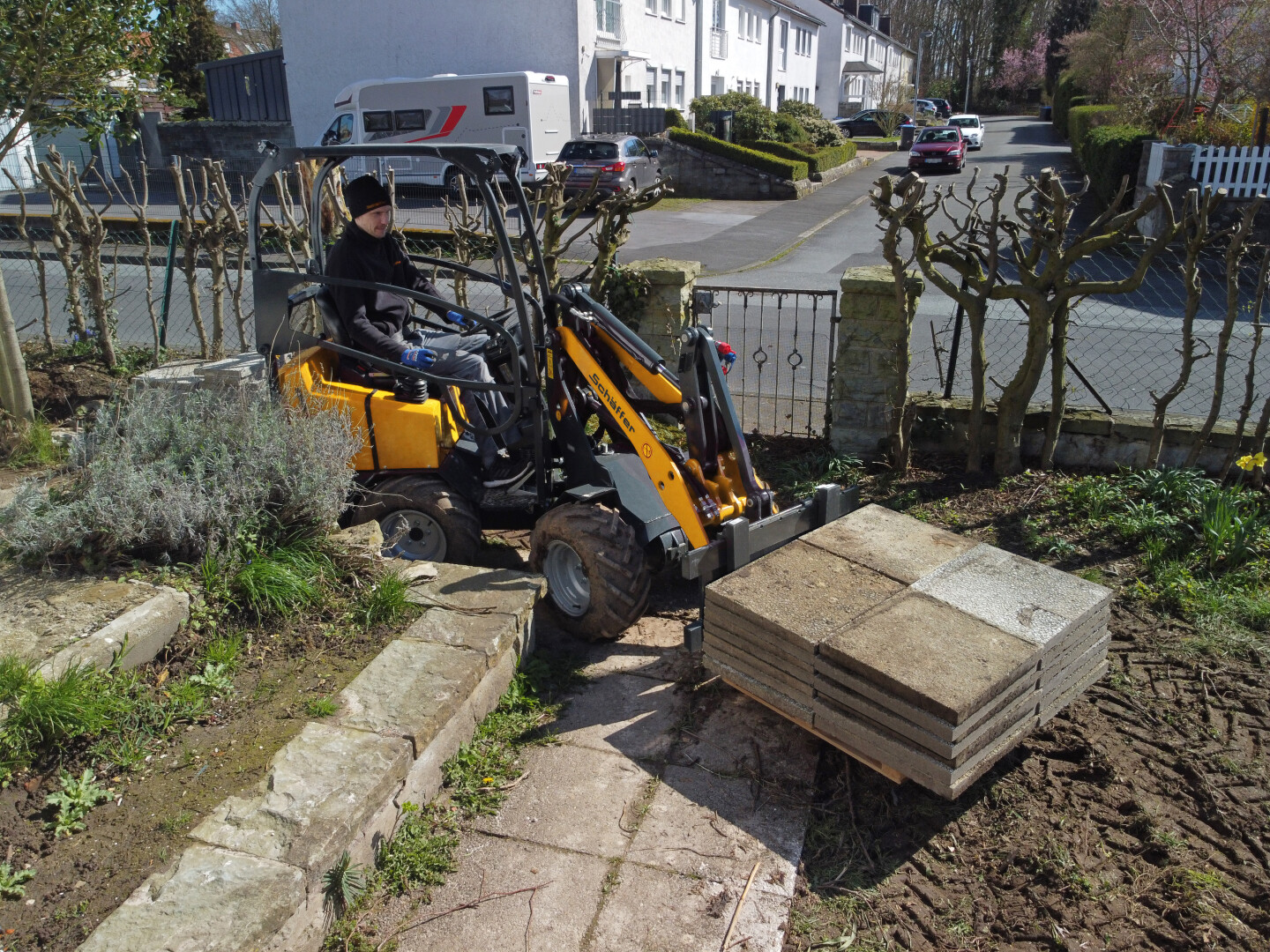

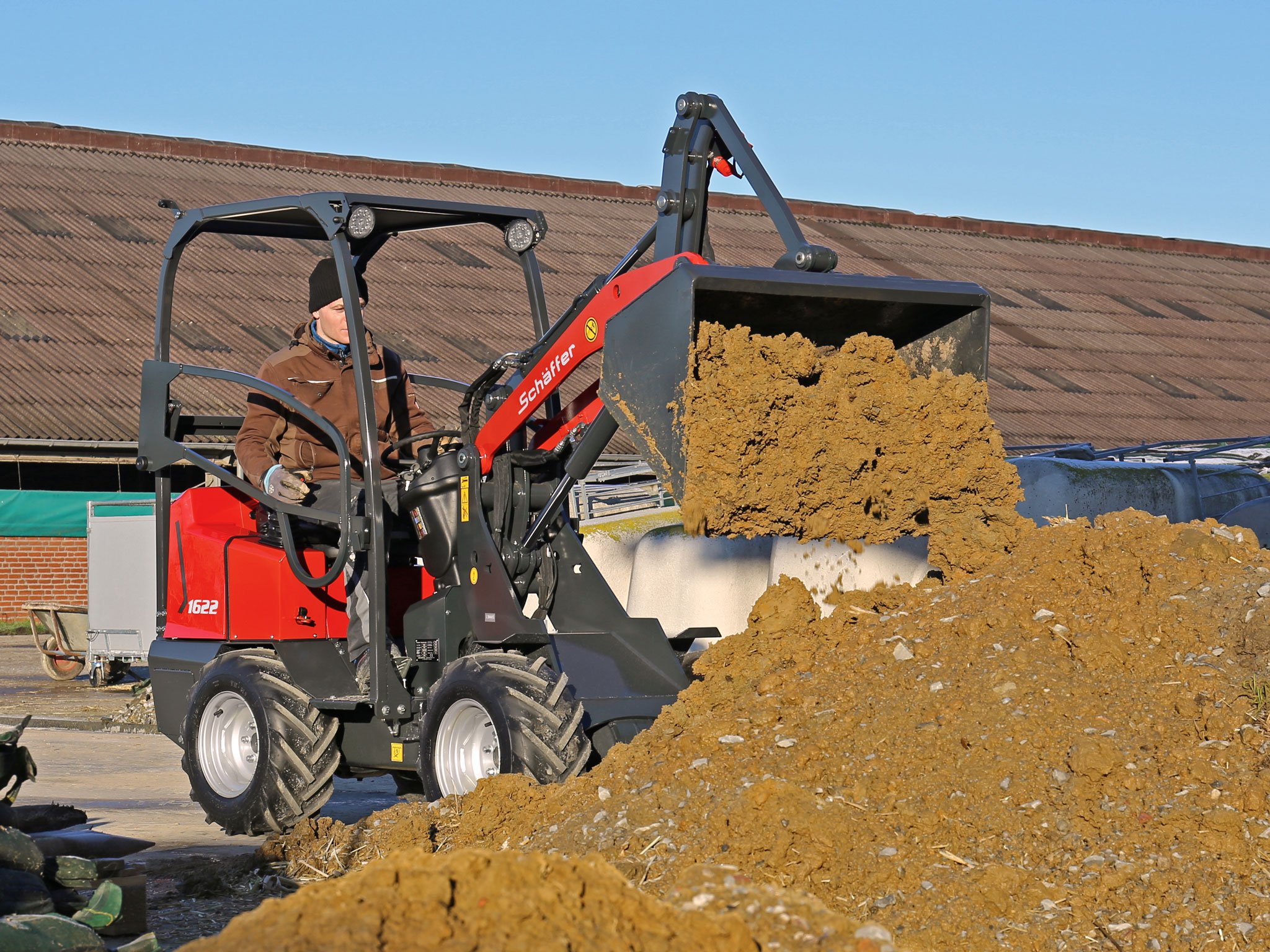

Hardtop 1622 in action below

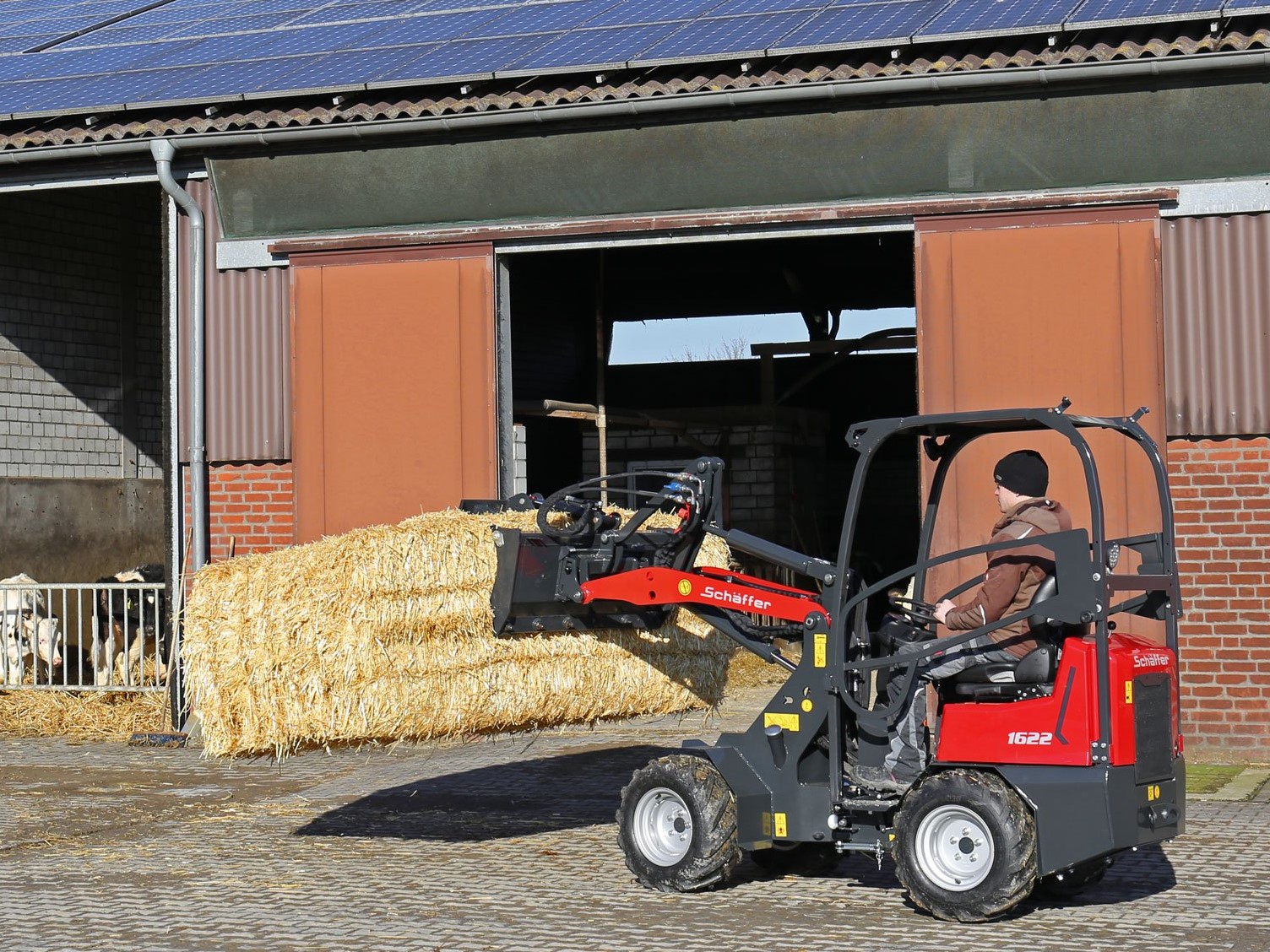

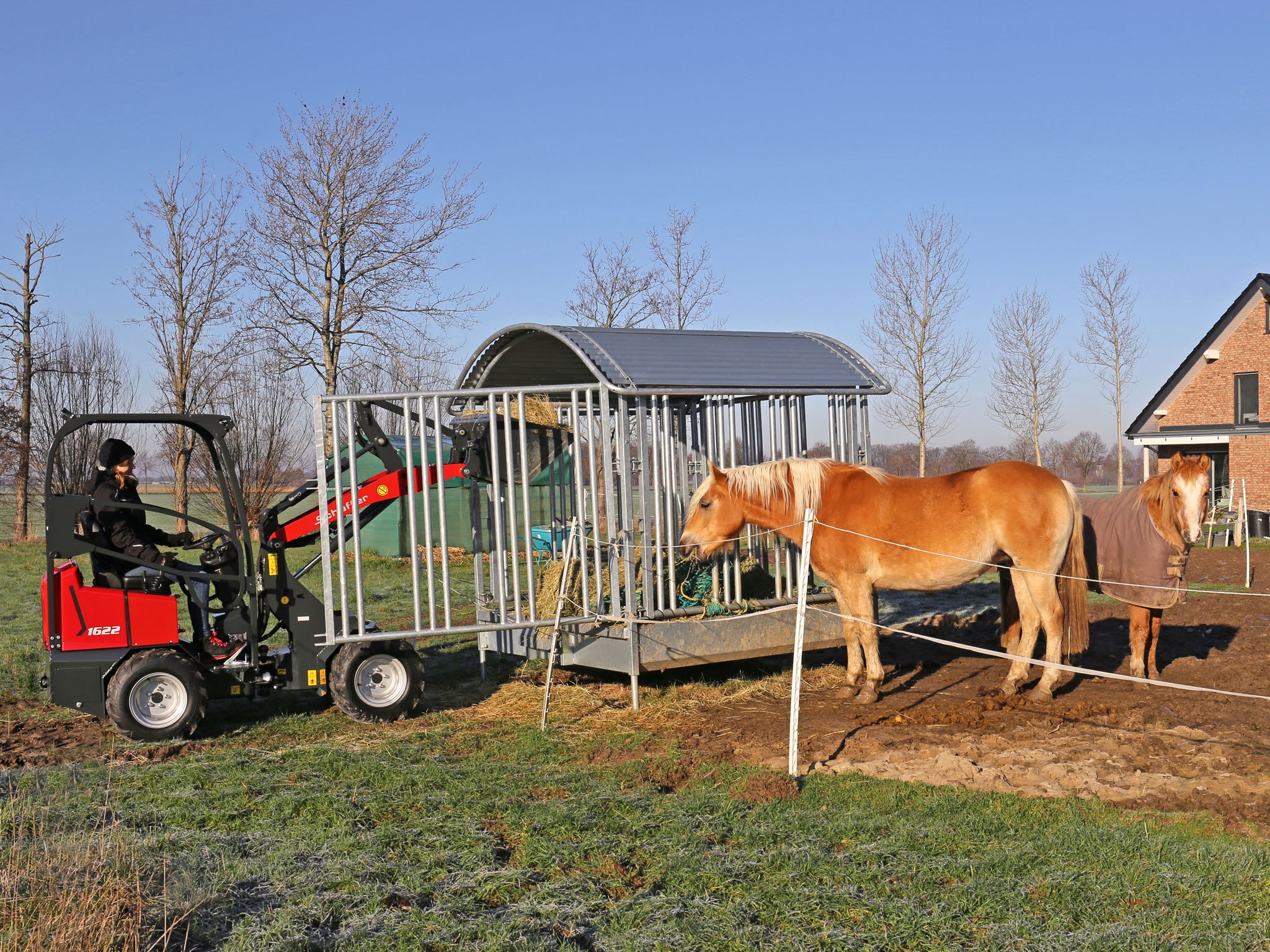

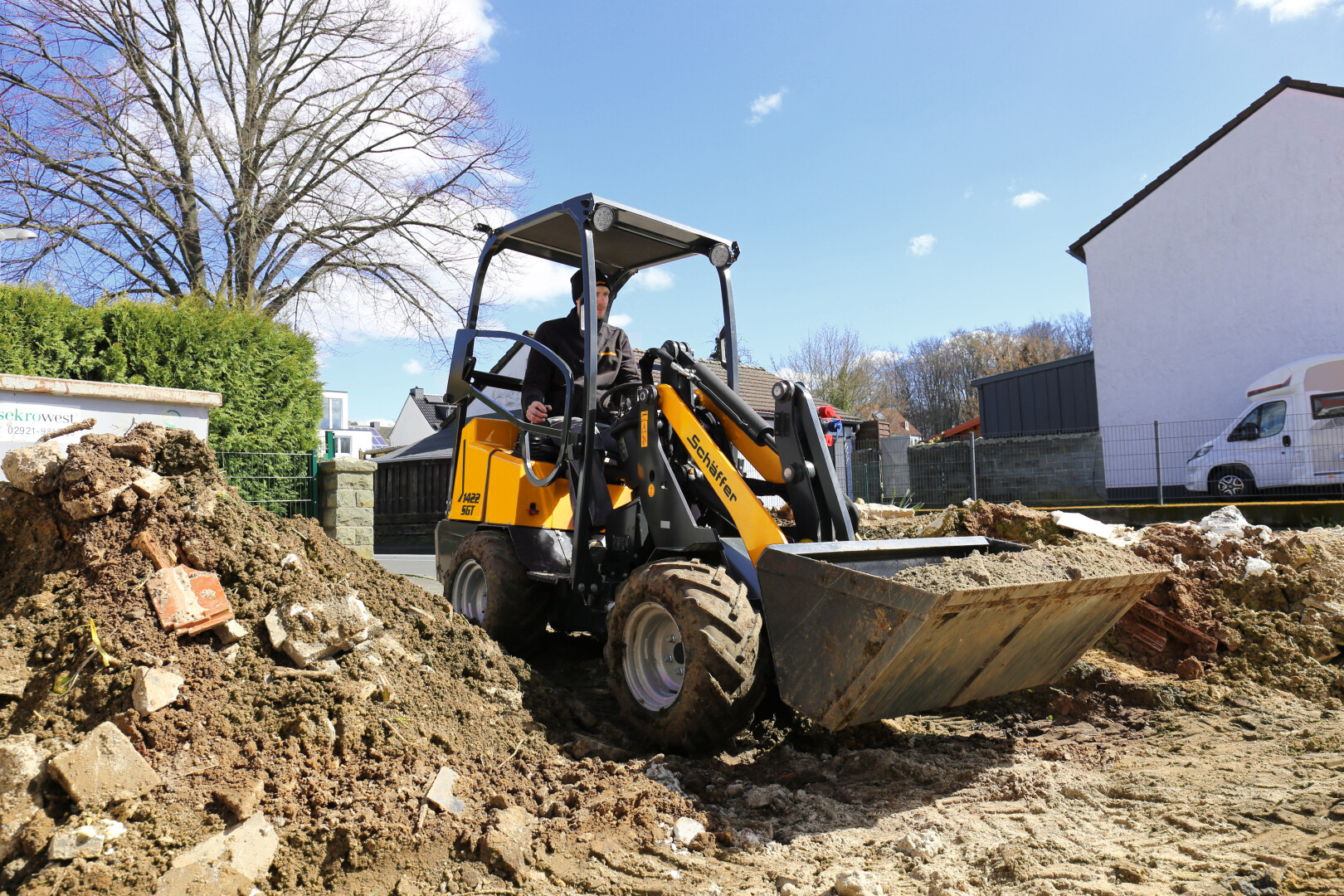

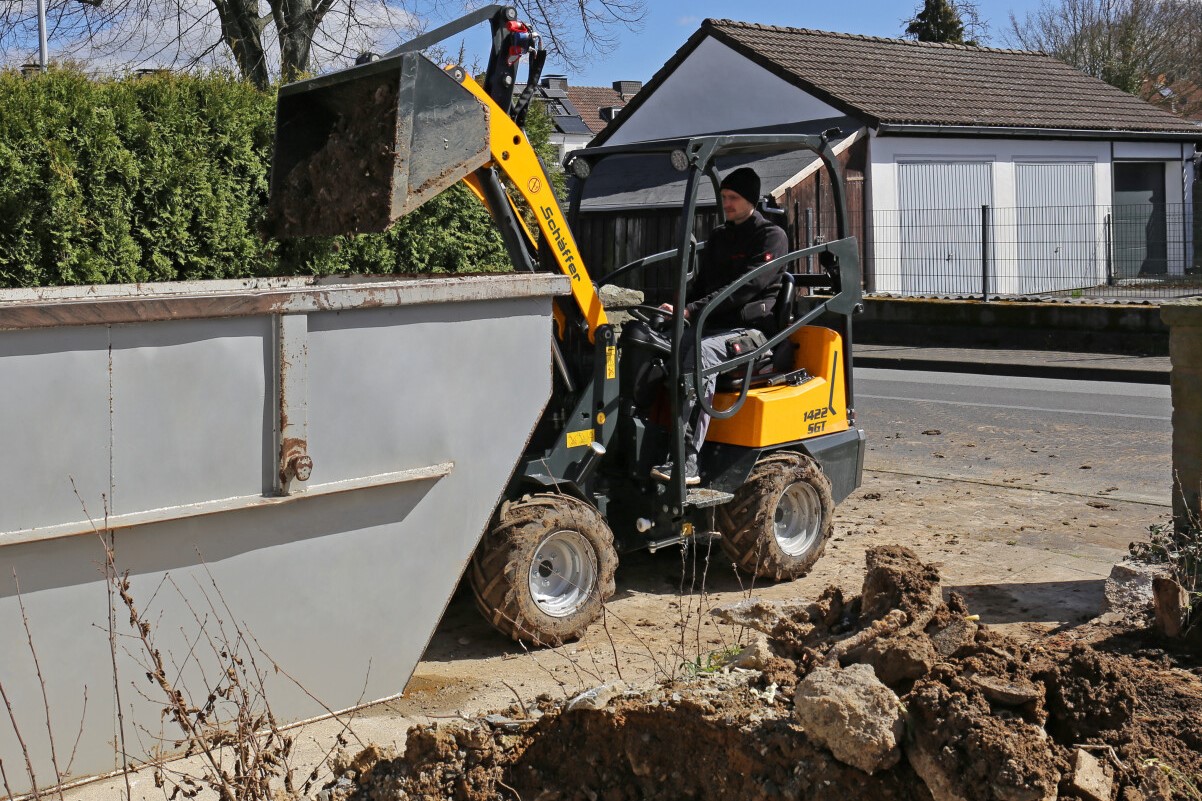

Schaffer tool carrier loaders are improving productivity in agriculture, horticulture, landscape gardening, backyard earthworks, arboriculture, earthmoving, construction, mining, local councils and many other industries.
A wide range of equipment and attachments enables Schaffer loaders to be adapted for almost any task.
Do you want the greatest breakout and lifting forces? Schaffer delivers.
Our expert engineers use the latest 3D computer-aided design, optimised by years of experience, to create the strongest tool carrier loaders on the market.
Everything about them is heavy duty, giving you peace of mind that you have invested in an industrial build mini loader that is going to last and get the job done with an absolute minimum of maintenance.
Tool carrier loaders operating weights start at 1250kg, and the pins, rams, chassis and whole machine are made for years of smooth operation. It's quality German engineering all the way.

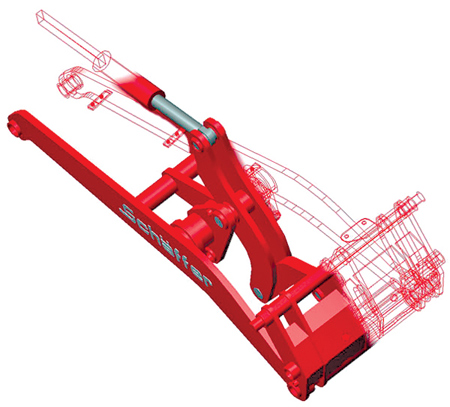

Tool Carrier Mast
The Schaffer oscillating articulation joint is a unique proven system that Schaffer has used for over 25 years. It has two massive advantages - it aids traction by allowing all wheels to stay on the ground in rough terrain and improves operator comfort because it acts like a suspension system.
You're not bounced around every time you go over a bump, so you can work faster and more productively. And it's much easier on your back.
Another important benefit is that Schaffer's oscillating articulation joints are totally maintenance free. Doing away with daily lubrication dramatically reduces your workload.
In addition, Schaffer's exclusive oscillating articulation joints are a sealed system, so sand and dirt can't enter and turn the grease into a paste that will cause friction to wear down the joints.
In fact, the joints are virtually indestructible. That's why we offer you the longest factory warranty in the loader business on this component of three years or 3000 operating hours.

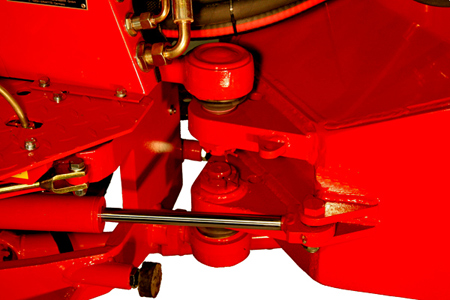

Tool Carrier Loader oscillating articulation joint.
The new 1622 tool carrier loader, has a compact loader universal hitch, it will other brands tools. Including Avant, Multione, Case and others. Now you can choose tools from any range.
Schaffer has worked in partnership with Kubota, the world's leading producer of water-cooled diesel motors under 100hp, for more than 35 years.
The excellent torque of a Kubota motor delivers exceptional performance - quiet, economical, fuel-efficient and environmentally friendly.
The newest generation of motors have been further improved with lower fuel consumption and emission levels. Kubota was the first manufacturer to meet the strict regulations on exhaust emissions in California - a measure of Kubota's green credentials.
A unique pre-chamber system means a motor can easily be converted to cold-pressed vegetable oil without a separate diesel fuel tank. Kubota motors are future-proof!
The long partnership between Kubota and Schaffer has advantages when it comes to service and spare parts. No other compact loader producer offers such reliable service.
Kubota motor.
The Schaffer tool carrier loader 1622 uses a Kubota diesel motor D903 that transfers power to the hydrostatic drive and Schaffer axles to create the highest traction force.
All Schaffer loaders, including the tool carrier loader range, have hydrostatic 4WD, so they can be operated very easily. Forward and reverse is simply changed with you rocker pedal foot, change the pressure and it will change the direction and speed you travel in. So simply select your direction and start smoothly with any load and accelerate to the maximum speed.
The outstanding ease of operation makes the mini loaders very manoeuvrable and allows the operator to concentrate on the job at hand for maximum productivity.
The hydrostatic drive provides high pushing power, faster travel speed and effortless control. The transmission also incorporates powerful engine braking for accurate operation in confined spaces.
Mini Loader driver's cockpit.
Schaffer uses only industrial quality Danfoss hydraulics, renowned as one of the leading brands of hydraulics in the world. Danfoss is backed up in Australia with its own specialist network. Everything is easy to access under the bonnet.
Tool Carrier Loader Danfoss hydraulics.
Schaffer loaders have a separate lever for auxiliary controls as standard in the tool carrier loader. The operator uses the joystick plus the auxiliary lever to open and close 4-in-1 buckets and grabs. This allows you to keep one hand on the steering wheel and use the other hand to control all mast functions with the joystick. Your hand never needs to come off the steering wheel so safety and productivity is improved.
You can really see what you're doing when you drive a Schaffer.
Front visibility is excellent thanks to the narrow, conical loading arm, which tapers from narrower at the mount to wider at the tool. The positioning of the hydraulic cylinders, centrally located in the loading arm, also enhances your vision.
Only on Schaffer loaders are all hydraulic cylinders freely suspended with spherical bearings instead of fixed pins so they will give you years of trouble-free operation.
Mini Loader mast.
Schaffer mini loaders have the driving position at the rear, the same as large industrial loaders.
This has important benefits. For instance, when reversing in tight areas you know which way you are going because the rear isn't swinging like a trailer.
Not only that, but with the cabin area at the rear it feels more spacious and less cramped, enhancing ergonomics, comfort, morale and productivity for the driver.
In fact, all industrial loaders are now built with the operator sitting on the rear chassis because driving is so much easier. This contributes to the speed and ease of work.
Mini Loader driving position.
The axles are one of the most important components of a loader - they must carry heavy loads and transfer the high torque of the hydrostatic power into pushing force over many years.
Original Schaffer axles are designed for each particular loader - that's the secret of their outstanding pushing power, as proved by independent tests.
Most manufacturers of mini loaders only use wheel motors, which are unable to be geared down for maximum torque. But Schaffer mini loaders use true differentials, the same as an industrial loader or car, which is why they outpush the rest.
Mini Loader heavy duty axles.
Australian Standards Certified ROPS/FOPS level 1 removable hardtop standard on every loader. It allows the operator to undo just 8 bolts to allow the loader to travel though areas approximately 1750mm in height, if required.
The 4 poster hardtop also gives the operator protection from the harsh Aussie sun to enhance driver safety and comfort.
Mini Loader ROPS - now standard with removable hardtop FOPS!
The Schaffer tool carrier loader has 23x10.5-12 inch heavy duty tyres as standard. These come in a variety of patterns including 12 ply SKD with rim guard and sand/turf.
These tyres give 10.5 inches of tread on the ground, maximising traction and flotation.
Skinny transport tyres can also be used to make the loader just 890mm wide to travel down the side of houses before changing back to standard tyres.
Mini Loader tyres.
The Schaffer tool carrier loader has a pivot point of 2230mm.
There's no need to waste time telescoping out each time to dump so this model is very popular for earthworks. The rigid Schaffer mast is simpler and stronger.
Mini Loader tipping.
At Schaffer, we are committed to your safety. A reverse beeper and safety strobe are both standard.
You are set up for construction site work from the get-go.
Mini Loader safety features.

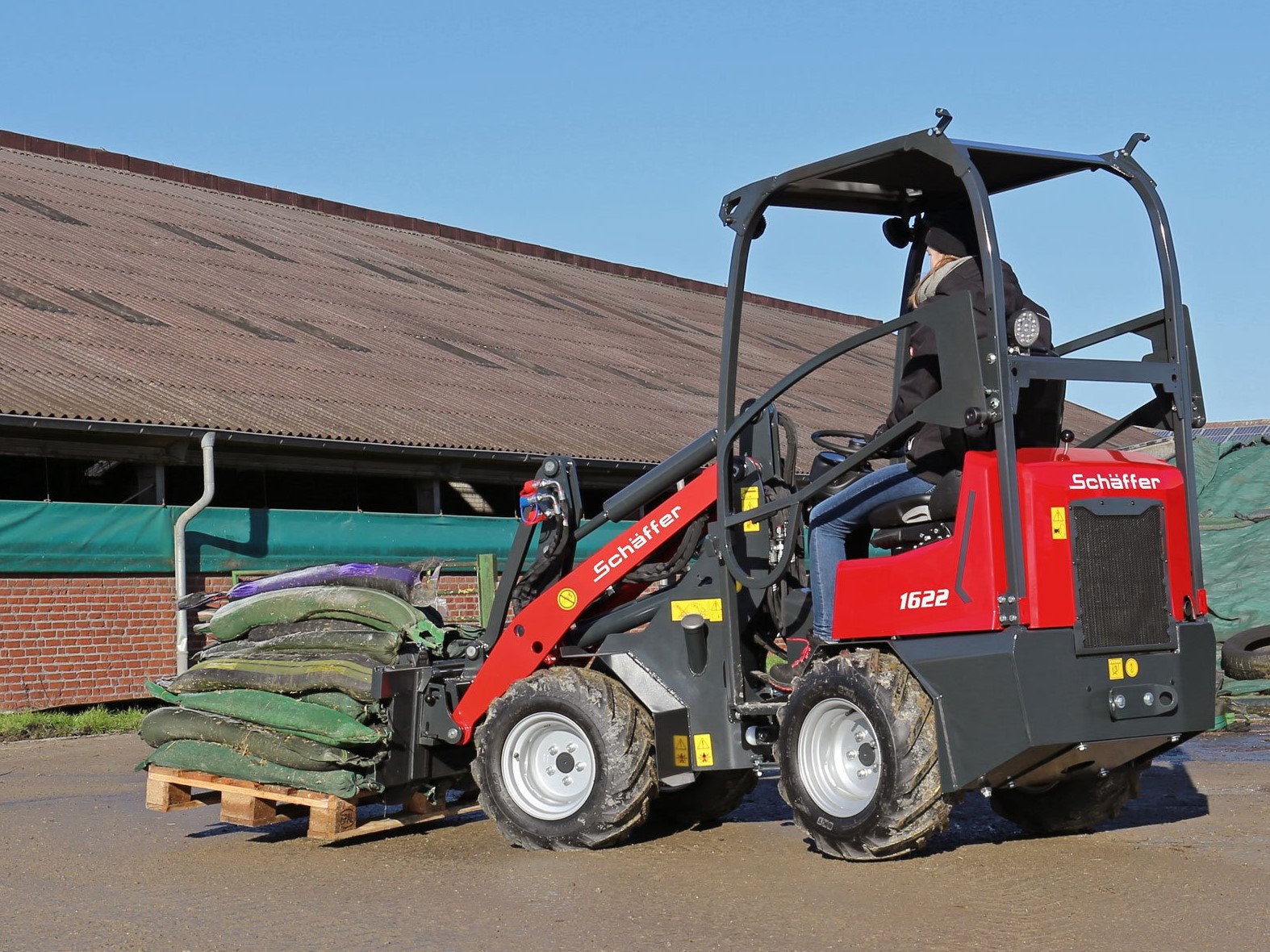

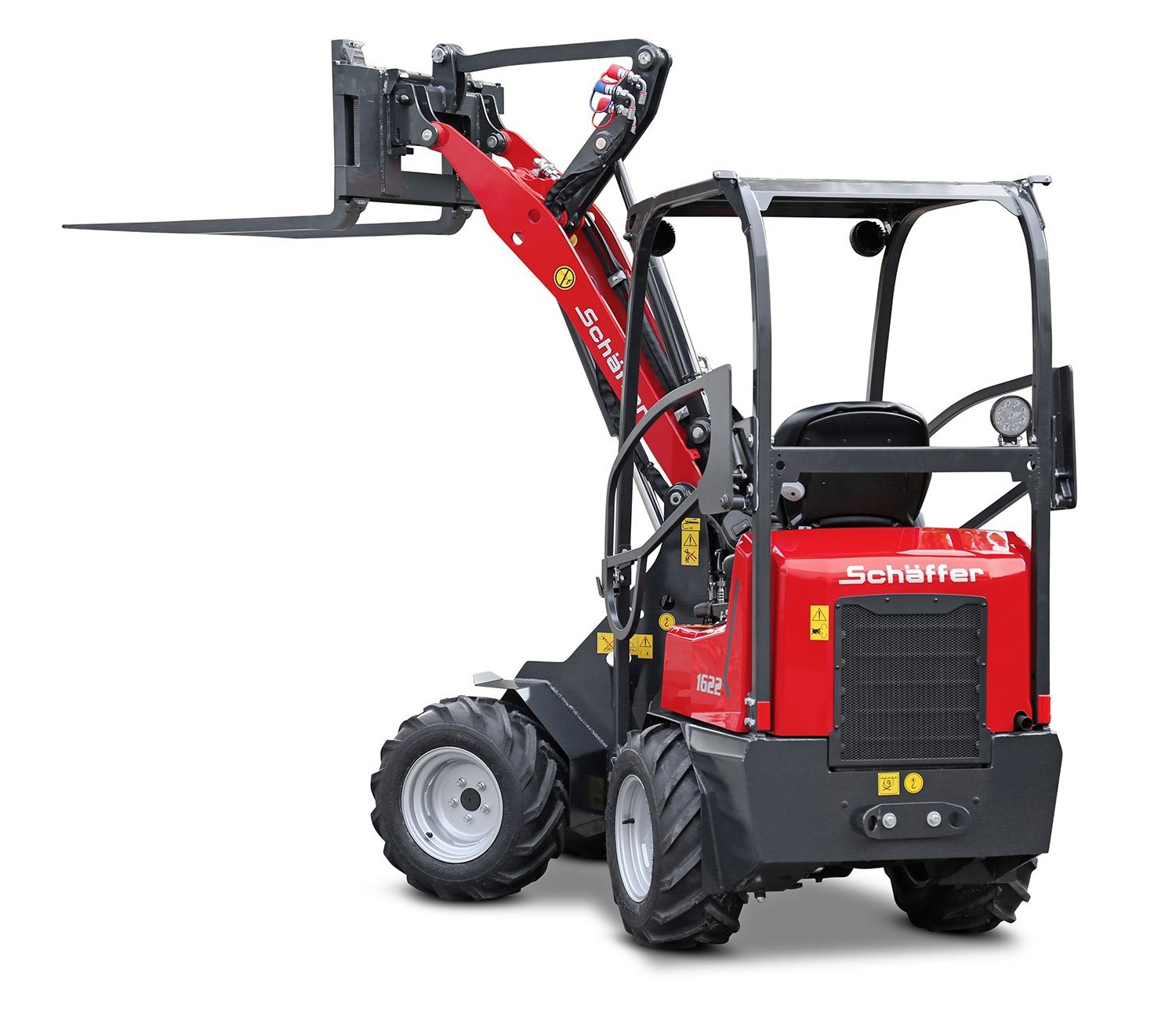

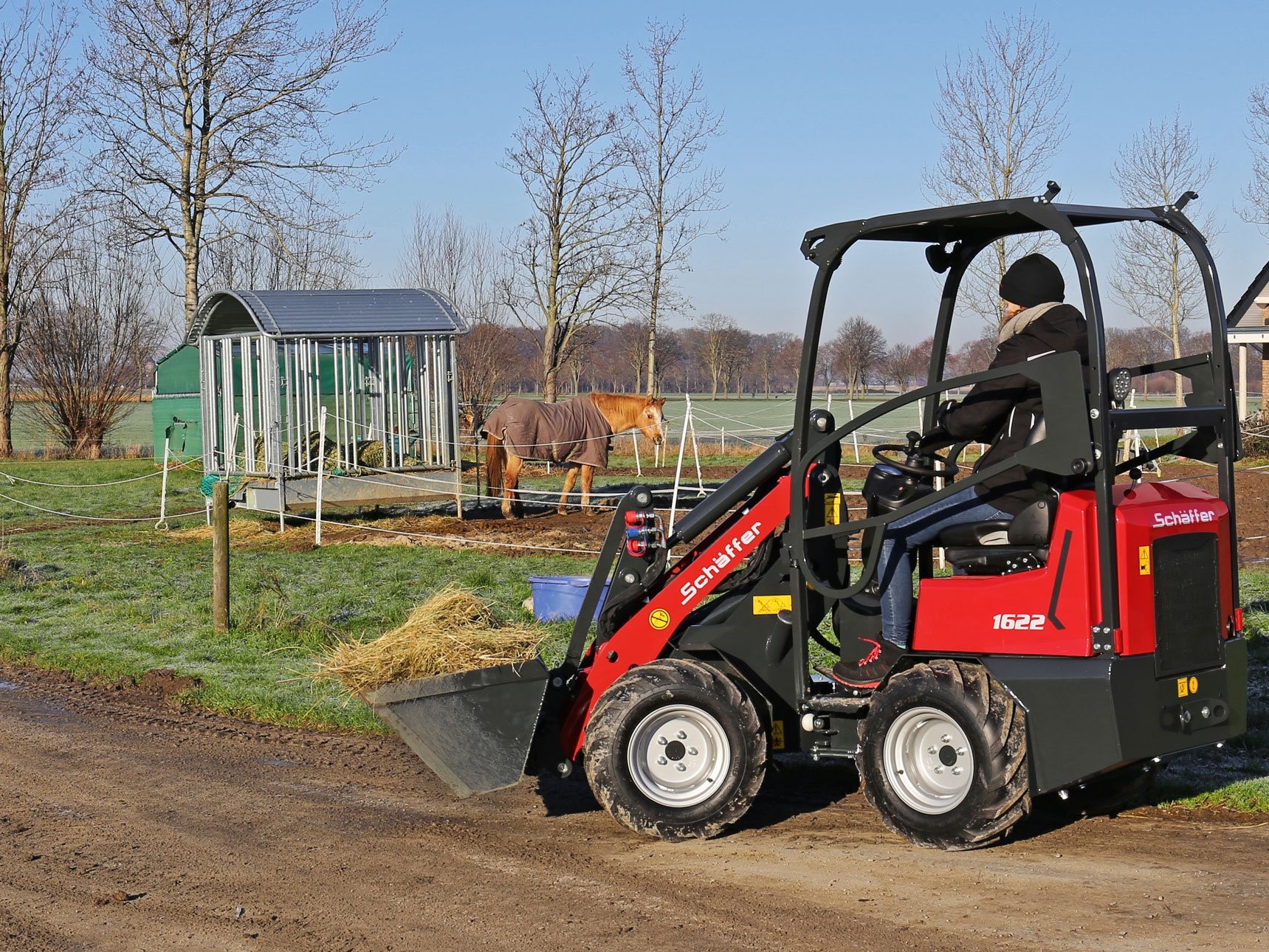

Over 50 tools turn your Schaffer mini loader into a productive workhorse able to do any job.
The list includes a 4-in-1, bulk buckets, pallet forks, augers, trenchers, rotary hoes, slashers, grab buckets and much more.
The cooling pack on every Schaffer has been designed in Germany for Aussie conditions enabling you to keep your hydraulics cool so they last over the long term.
Schaffer loaders rarely require more than routine service but it's reassuring to know that all Schaffer loaders are backed by our Australian service division which offers original Schaffer replacement parts and expertise.
Mini Loader spare parts.
